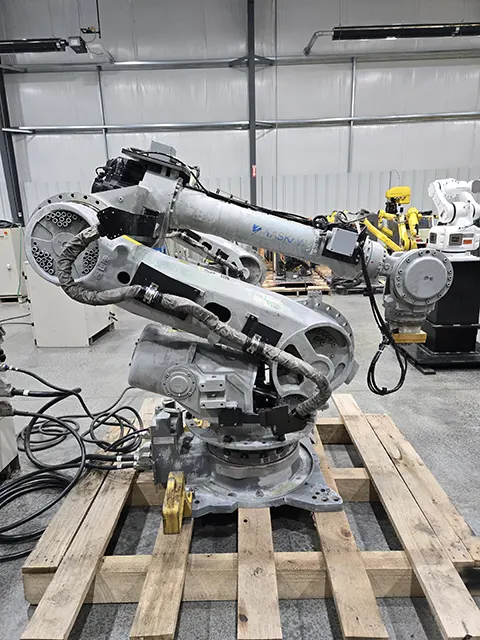

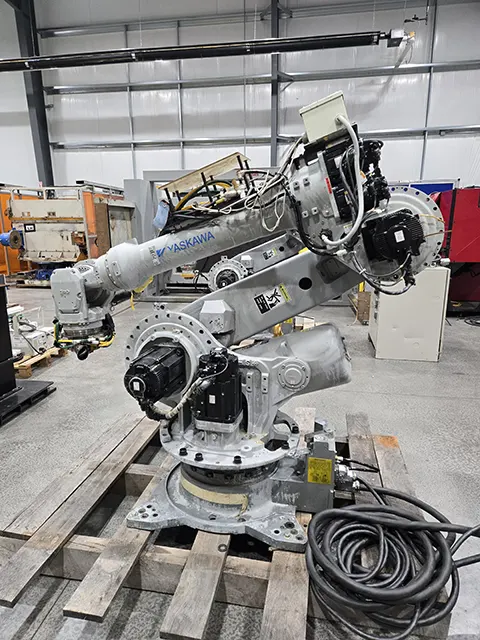

Motoman MH215


Motoman MH215 Overview

The Yaskawa Motoman MH215 is a multi-purpose industrial robot used in very heavy payload applications including machine tending, spot welding and deburring. The Motoman MH-215 is very similar in payload and reach to the FANUC R-2000ib 210F and ABB IRB 6640/2.55. This used Motoman robot is the successor to the Motoman ES200D. The MH215 is available in the Motoman DX100 controller. While mainly a material handling robot, theYaskawa MH215 can also perform assembly, dispensing, cutting, and material removal applications. A used Motoman MH215 is sometimes used over the Motoman MH165 when an application requires more movement power.

Looking to sell a used Motoman robot similar to this model? Click Here: Sell a robot

Specifications

Axes 6
Payload: 215 KG (473 lbs)
Reach: 2912 MM (114.64 in)
Repeatability: ±0.2mm (.007 in)
Robot Mass: 1100 KG (2513 lbs)
Structure: Articulated
Robot Motion Speed
S-Axis 100 °/s (1.75 rad/s)
L-Axis 90 °/s (1.57 rad/s)
U-Axis 97 °/s (1.69 rad/s)
R-Axis 120 °/s (2.09 rad/s)
B-Axis 120 °/s (2.09 rad/s)
T-Axis 190 °/s (3.32 rad/s)
Robot Motion Range
S-Axis - -180° to +180°
L-Axis - -60° to +76°
U-Axis - -142.5° to +230°
R-Axis - -360° to +360°
B-Axis - -130° to +130°
R-Axis - -360° to +360°
