FANUC M-900ia/600

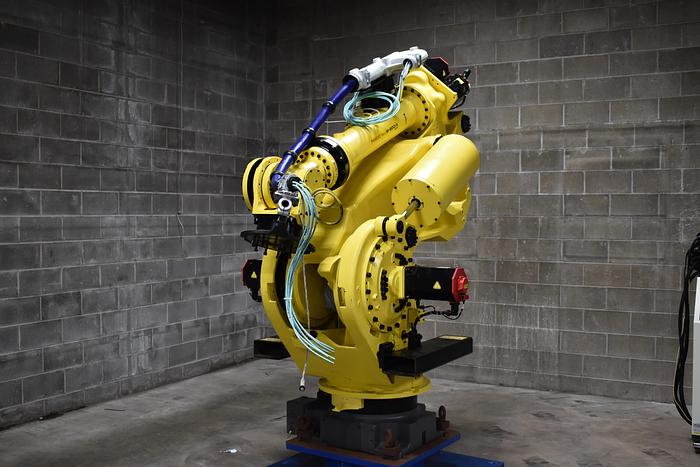

FANUC M900ia/600 Robot

All units are tested and working.

Contact Matt by phone 440-724-6568 or email for more information on buying this robot.

Looking for another robot? Check out our full inventory

FANUC M-900ia/600 Overview

The FANUC M-900ia/600 is a very heavy payload robot used for automated material handling applications. The FANUC M900ia/600 is a six axis robot with servo driven motors. The FANUC M900ia/600 is available in the FANUC R-J3ib, FANUC RJ3IC, and FANUC R-30IA, controllers. The m900ia 600 has a payload of 600 KG making it one of the highest payload used FANUC robots available. A FANUC m-900ia 600 robot can only be floor mounted due to its mechanical weight. The mechanical arm has a part number of A05B-1328-B211.

The FANUC M900 600 can be mounted to a linear rail or servo driven track to greatly expand the work envelope. This robot is perfect for applications that require heavy lifting. Applications that do not require as much payload can utilize the M900ia/350 instead. Applications requiring a higher payload will have to step up to the M-2000ia/1200.

Looking at selling a used FANUC robot like this? Click Here: Selling a used robot


Axes 6
Payload: 600 KG (1,322.77 lbs)
Reach: 2832 MM (104.33 in)
Repeatability: ±0.3mm (.011 in)
Robot Mass: 2800 KG (6,172.94 lbs)
Structure: Articulated
Robot Motion Speed
J1 80 °/s (1.39 rad/s)
J2 80 °/s (1.39 rad/s)
J3 80 °/s (1.39 rad/s)
J4 100 °/s (1.74 rad/s)
J5 100 °/s (1.74 rad/s)
J6 160 °/s (2.79 rad/s)
Robot Motion Range
J1 - 360°
J2 - 154°
J3 - 160°
J4 - 720°
J5 - 244°
J6 - 720°
