Yaskawa HP20D

Robot Specifics

Condition - Tested and functioning to factory standards

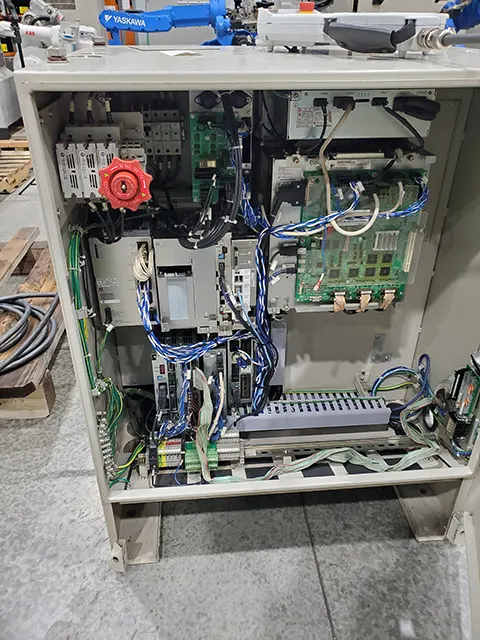

Controller - DX100

Moving Time - 0.0

Year - 2010

Availability - In Stock

Serial - S5Y57623M

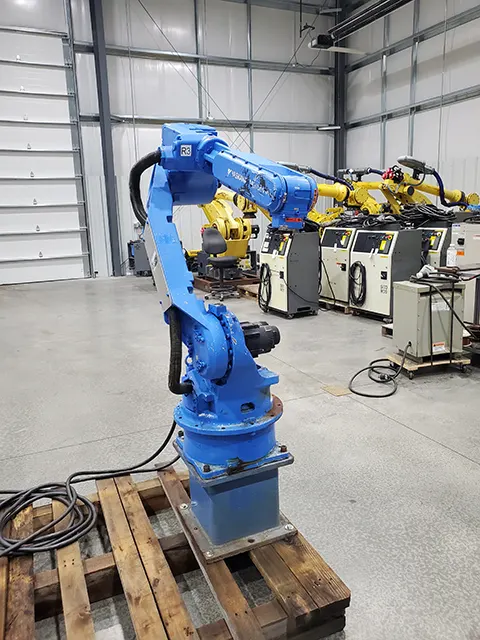

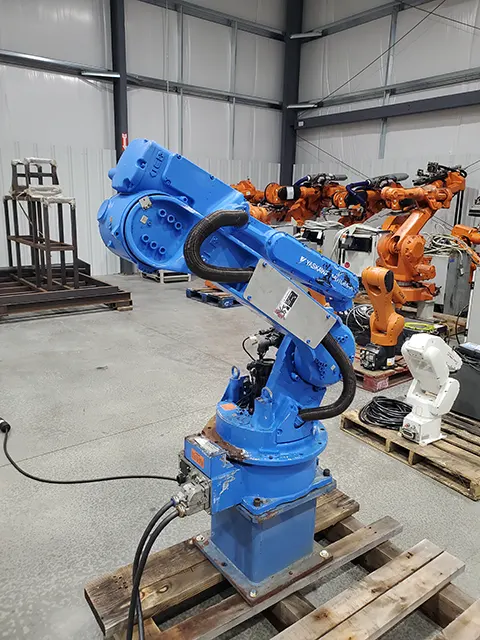

Yaskawa HP20D Industrial Robot
$15,000 ea

Axes 6

Payload: 20 KG (44 lbs)

Reach: 1717 MM (67 in)

Repeatability: ±0.06mm (.0024 in)

Robot Mass: 268 KG (590 lbs)

Structure: Vertical Joint-Arm

Robot Motion Speed

S-Axis 197 °/s (3.44 rad/s)

L-Axis 175 °/s (3.05 rad/s)

U-Axis 187 °/s (3.26 rad/s)

R-Axis 400 °/s (6.98 rad/s)

B-Axis 400 °/s (6.98 rad/s)

T-Axis 600 °/s (10.47 rad/s)

Robot Motion Range

S-Axis - ±180°

L-Axis - +155° - 110°°

U-Axis - +255° - 165°

R-Axis - ±200°°

B-Axis - +230° - 50°

T-Axis - ±360°

This Yaskawa HP20D industrial robot is a clean unit and ready to be integrated into a new project. This articulated robot is powered by the Yaskawa DX100 controller. This six-axis robot features a payload of 20 KG and reach of 1717 MM. This industrial handling robot is commonly used in automated assembly, robotic machine tending, and automated waterjet cutting applications. This HP20D is a economical choice to automate your next project. This robot was reinitialized prior to getting to our facility.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information
