  5. F100887 - FANUC M-710ic/20L

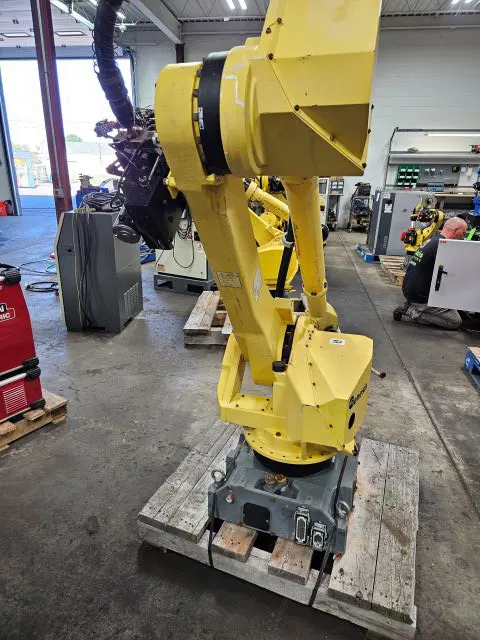

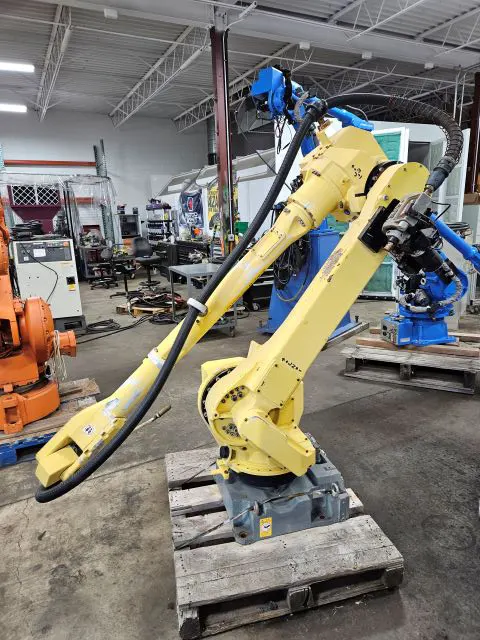

FANUC M-710ic/20L with Lincoln Powerwave R450 STT



Robot Specifics

Condition - Tested and functioning to factory standards

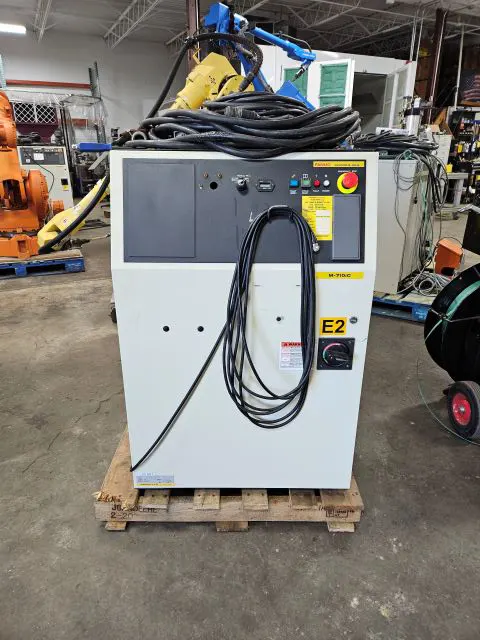

Controller - R-30ia
Running Hours - N/A
Year - 2010
Price - 49,900
Serial - F100887




Robot Specifications

Axes 6
Payload: 20 KG (44.09 lbs)
Reach: 3110 MM (122.44 in)
Repeatability: ±0.15mm (.0059 in)
Robot Mass: 540 KG (1,190 lbs)
Structure: Articulated
Robot Motion Speed
J1 175 °/s (3.05 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 350 °/s (6.11 rad/s)
J5 360 °/s (6.28 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range
J1 - 360°
J2 - 225°
J3 - 432°
J4 - 400°
J5 - 280°
J6 - 900°

Robot Description

This FANUC M-710ic/20L industrial robot is integrated with a Lincoln Powerwave R450 STT robotic welder and is ready to be used for robotic arc welding. This articulated robot is paired with the FANUC R-30ia controller. This six axis robot is a great option for applications that require an extended reach robot. Price includes basic licensed FANUC software and unlimited tech support. Options can be added for additional cost. This robot was re-initialized and the hours noted do not reflect the actual running hours of the robot.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com
