FANUC M-16ib Industrial Handling Robot

Robot Specifics

Condition - Tested and functioning to factory standards

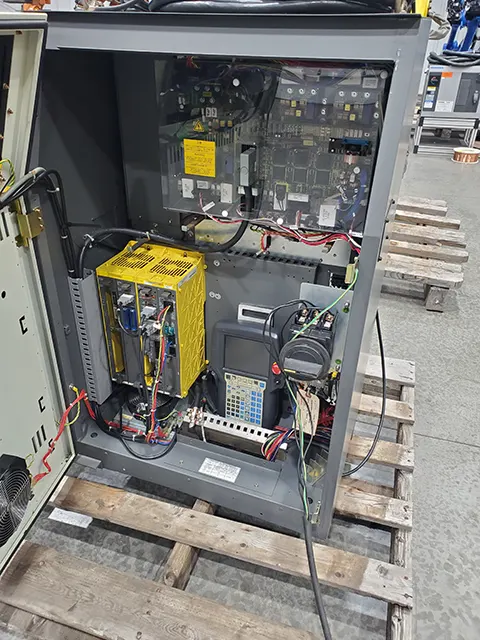

Controller - R-j3ib

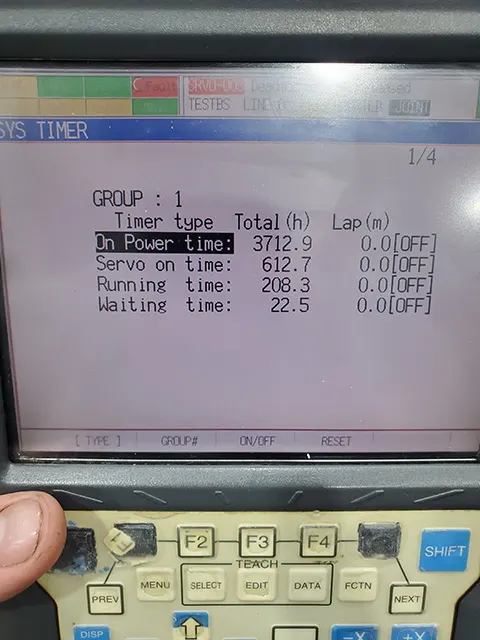

Running Hours - 208.3

Year - 2003

Availability - In Stock

Serial - F59306

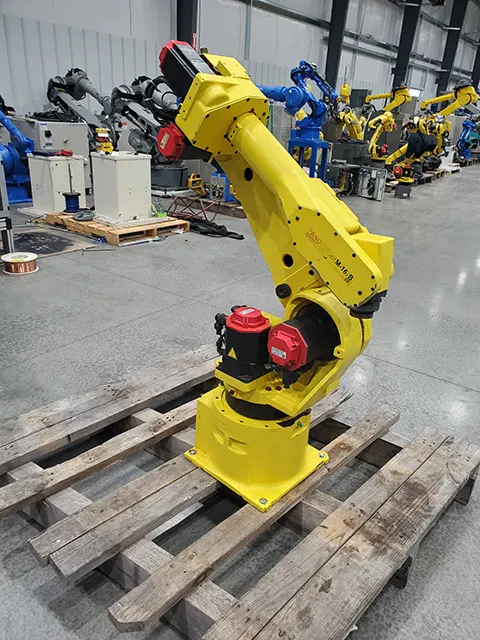

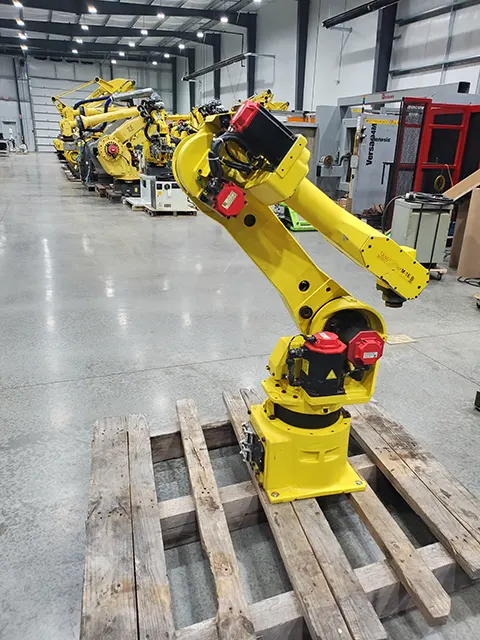

FANUC M-16ib Handling Robot
$8,000 ea

This FANUC M-16ib arc welding robot has been tested and is fully functional. This 120ib robotic manipulator is a economical choice for welding automation. This articulated robot are paired with the FANUC R-30ia controller. FANUC licensed software and unlimited tech support is available as is options. This robot was reinitialized prior to arriving at our facility.

Contact Robots Done Right for more information or to purchase these industrial robot arms at mm@robotsdoneright.com

Robot Specifications

Axes 6

Payload: 20 KG (44 lbs)

Reach: 1667 MM (65.63 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 220 KG (485 lbs)

Structure: Articulated

Robot Motion Speed

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range

J1 - 170°

J2 - 160°

J3 - 290°

J4 - 200°

J5 - 140°

J6 - 450°
