FANUC M-710ic/20M



Robot Specifics

Condition - Tested and functioning to factory standards

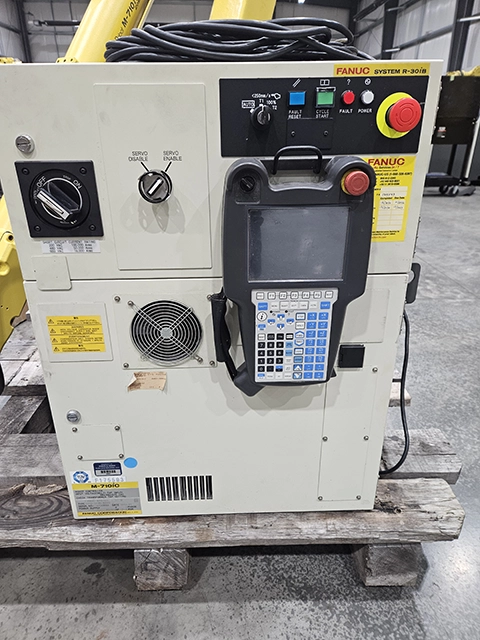

Controller - R-30ib

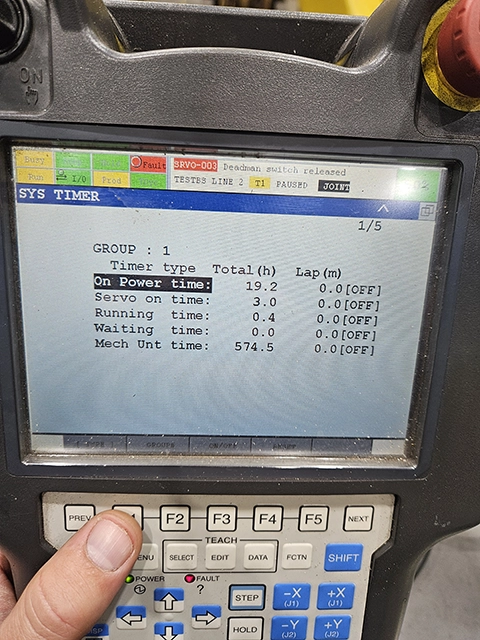

Running Hours - .4
Year - 2016
Availability - In Stock
Serial - F175593

FANUC M-710ic/20M With R-30ib Controller
$37,500 ea




Robot Description

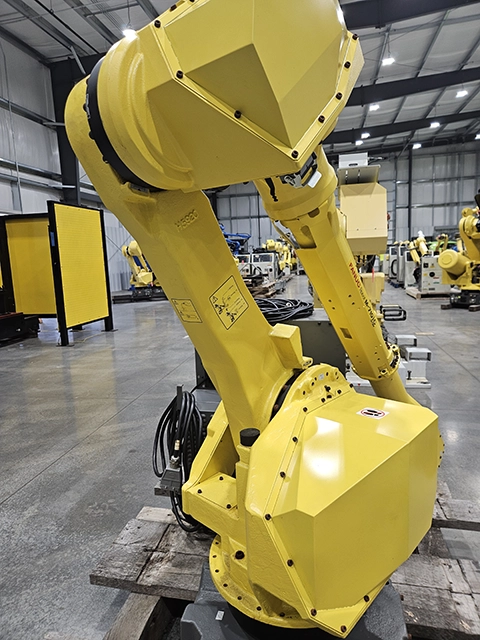

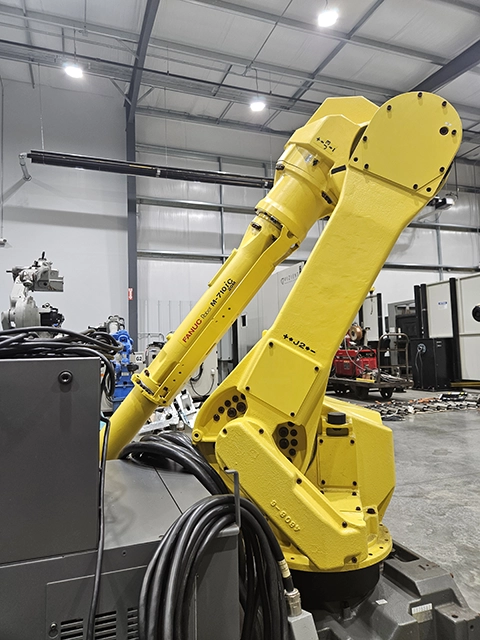

This FANUC M-710ic/20M industrial robot was a demo unit and has never been in production. This industrial robot arm has the FANUC R-30ib controller. This six axis robot can be used in various applications including robotic milling or automated material removal.

Contact Robots Done Right for more information or to purchase this robotic manipulator at mm@robotsdoneright.com.

For more information on condition of the robot and return policies of Robots Done Right please review our product information.

Robot Specifications

Axes 6
Payload: 20 KG (44.09 lbs)
Reach: 2606 MM (101.65 in)
Repeatability: ±0.15mm (.0059 in)
Robot Mass: 570 KG (1168.45 lbs)
Structure: Articulated
Robot Motion Speed
J1 175 °/s (3.05 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 350 °/s (6.11 rad/s)
J5 360 °/s (6.28 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range
J1 - 360°
J2 - 225°
J3 - 435°
J4 - 400°
J5 - 280°
J6 - 900°
