FANUC M-410ib/300

Robot Specifics

Condition - Tested and functioning to factory standards

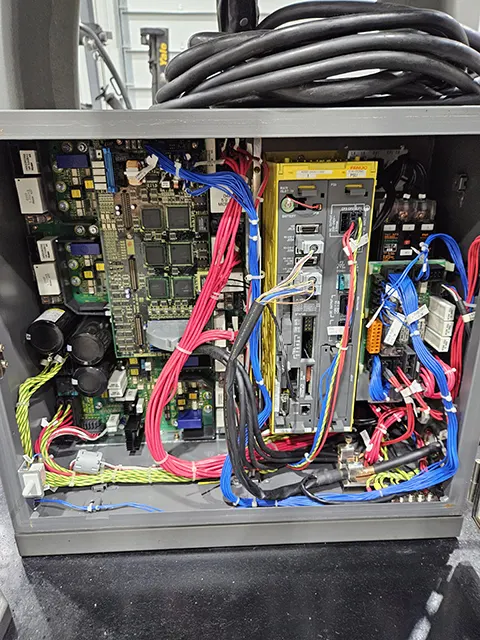

Controller - R-J3ib

Running Hours - 23.6

Year - 2004

Availability - Sold

Serial - E17297

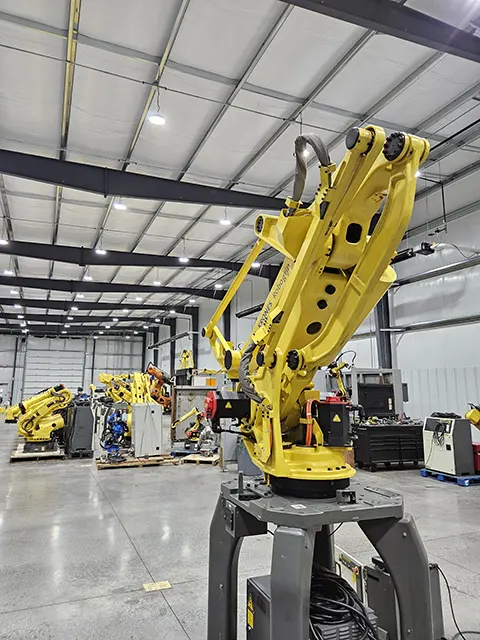

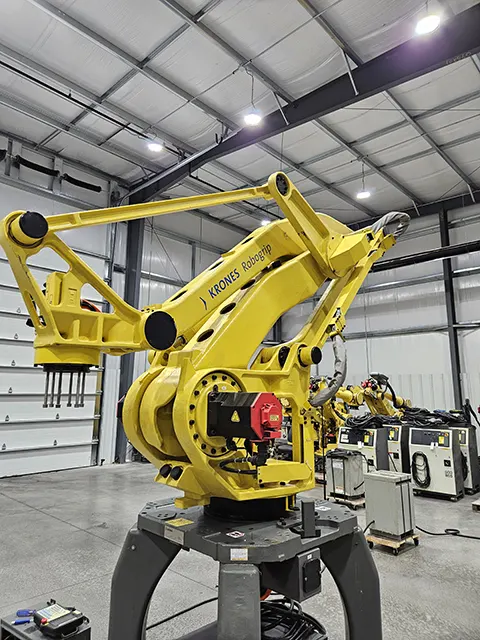

FANUC M-410ib/300 Industrial Palletizing Robot

This FANUC M-410ib/300 industrial robot is a hour axis unit that would make an excellent direct replacement for an existing palletizer that is run its life. This articulated robot has the FANUC R-J3ib controller. This used FANUC Robot is optimal for robotic palletizing and automated packaging applications.

Contact Robots Done Right for more information or to purchase this robotic manipulator at mm@robotsdoneright.com.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 4

Payload: 300 KG (661 lbs)

Reach: 3143 MM (123.74 in)

Repeatability: ±0.5mm (.019 in)

Robot Mass: 1940 KG (4,276 lbs)

Structure: Articulated

Robot Motion Speed

J1 85 °/s (1.48 rad/s)

J2 90 °/s (1.57 rad/s)

J3 100 °/s (1.74 rad/s)

J4 190 °/s (3.31 rad/s)

Robot Motion Range

J1 - 360°

J2 - 144°

J3 - 136°

J4 - 540°
