| Condition - Tested and functioning to factory standards |

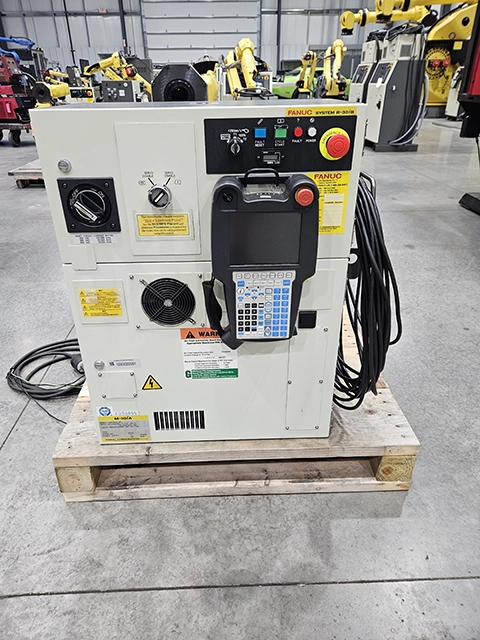

| Controller - R-30ib |

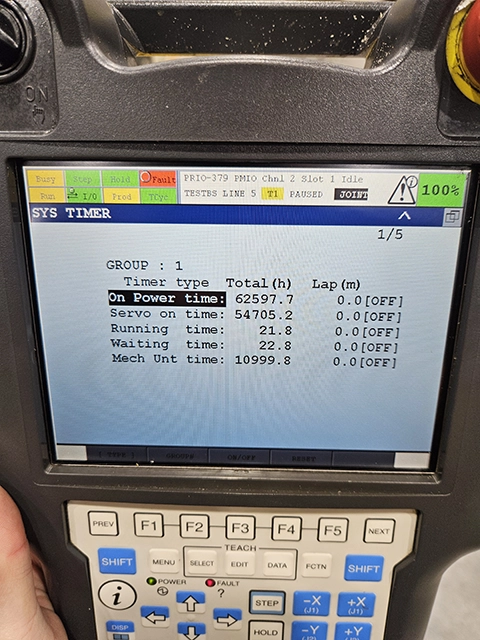

| Running Hours - 21.8 |
| Year - 2018 |
| Serial - F230855 |

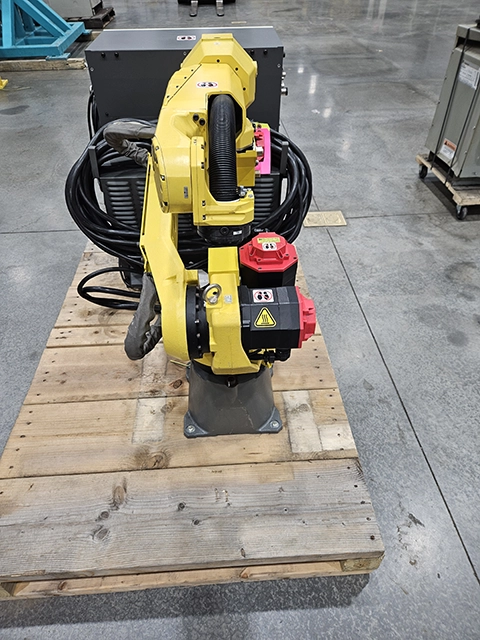

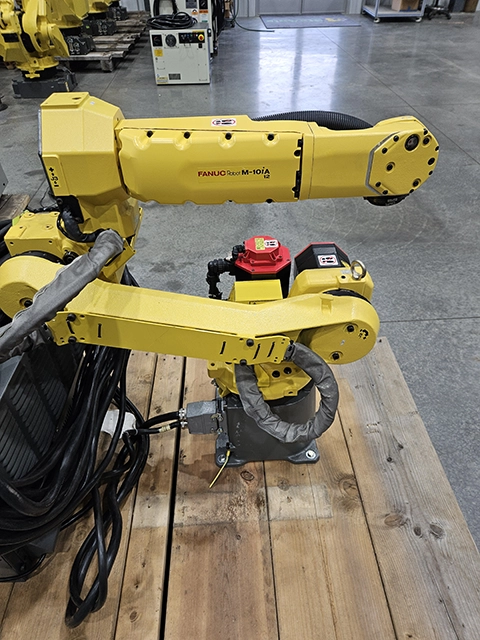

FANUC M-10ia/12 With R-30ib Controller
|
| Axes 6 |
| Payload: 12 KG (26.45 lbs) |
| Reach: 1420 MM (55.90 in) |
| Repeatability: ±0.08mm (.0031 in) |
| Robot Mass: 130 KG (286 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| J1 230 °/s (4.01 rad/s) |
| J2 225 °/s (3.93 rad/s) |
| J3 230 °/s (4.01 rad/s) |
| J4 430 °/s (7.5 rad/s) |
| J5 430 °/s (7.5 rad/s) |
| J6 630 °/s (11.00 rad/s) |
| Robot Motion Range |
| J1 - 360° |
| J2 - 250° |
| J3 - 445° |
| J4 - 380° |
| J5 - 380° |
| J6 - 720° |
