FANUC Arcmate 120ic/12L



Robot Specifics

Condition - Tested and functioning to factory standards

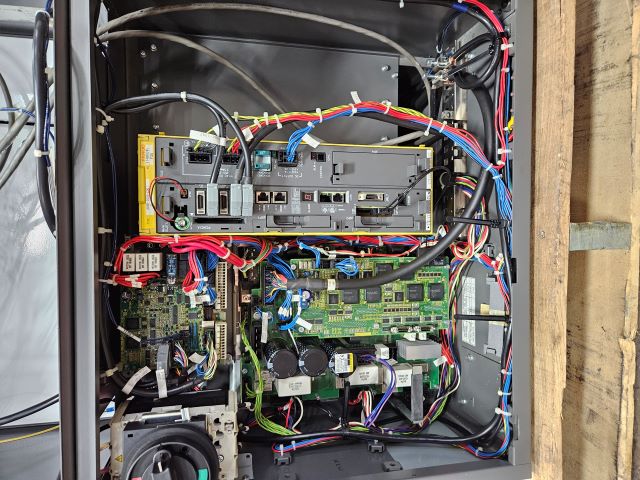

Controller - R-30ib
Running Hours - 0.9
Year - 2014
Serial - F154186




Robot Specifications

Axes 6
Payload: 12 KG (26.45 lbs)
Reach: 2009 MM (79.09 in)
Repeatability: ±0.08mm (.0039 in)
Robot Mass: 250 KG (551 lbs)
Structure: Articulated
Robot Motion Speed
J1 200 °/s (3.49 rad/s)
J2 175 °/s (3.05 rad/s)
J3 190 °/s (3.32 rad/s)
J4 430 °/s (7.5 rad/s)
J5 430 °/s (7.5 rad/s)
J6 630 °/s (11 rad/s)
Robot Motion Range
J1 - 340/370°
J2 - 260°
J3 - 460°
J4 - 400°
J5 - 360°
J6 - 900°

Robot Description

This FANUC Arcmate 120ic/12L industrial robot is very clean and ready for production. This robotic manipulator is an extended reach robot with a maximum reach of 2009 MM. This articulated robot is paired with the FANUC R-30ib controller. Price includes basic licensed FANUC software and unlimited tech support. Options can be added for additional cost. It is believed that this robot was re-initialized prior to arrival and the hours might not be correct.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com
