FANUC Arcmate 100ic/6L Welding Cell With Dual Tilt Rotate



Robot Specifics

Condition - Tested and functioning to factory standards

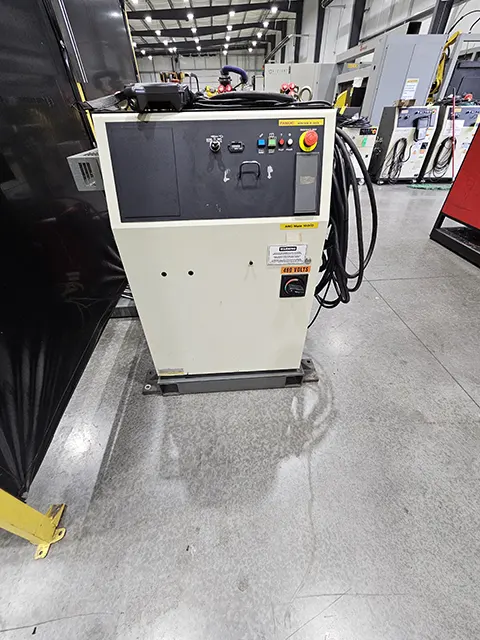

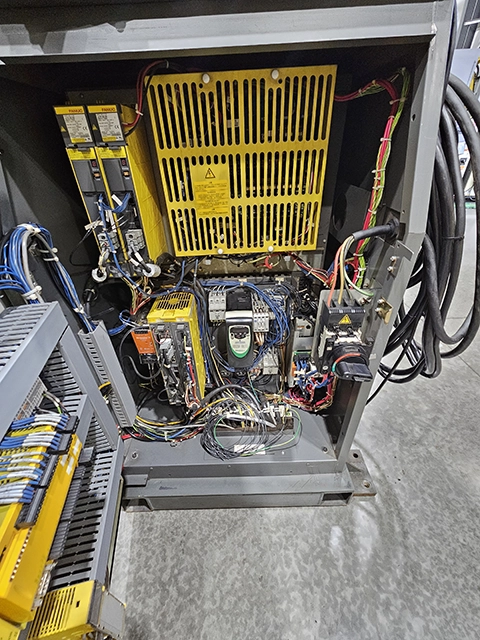

Controller - R-30ia

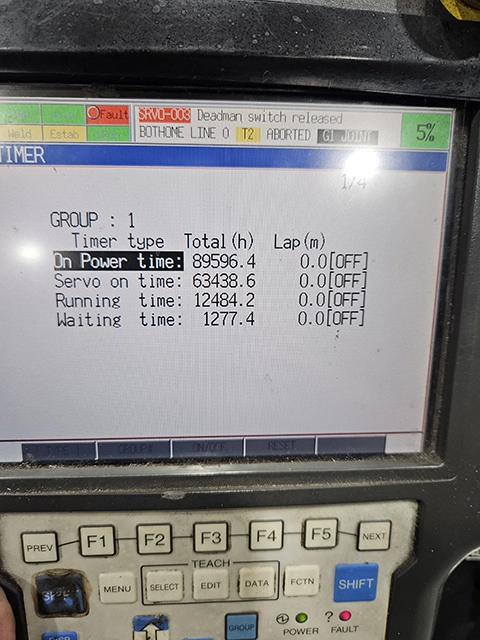

Running Hours - 12,484.2
Year - 2012
Availability - In Stock
Serial - F128906

FANUC Arcmate 100ic/6L Welding Cell With Dual Tilt Rotate And Lincoln R450
$80,000 ea




Robot Description

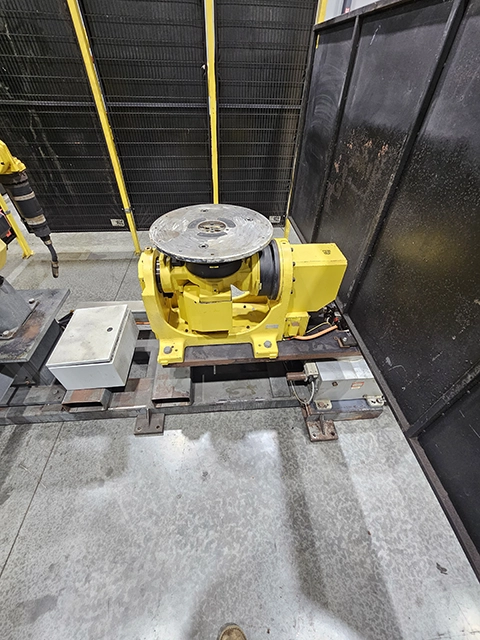

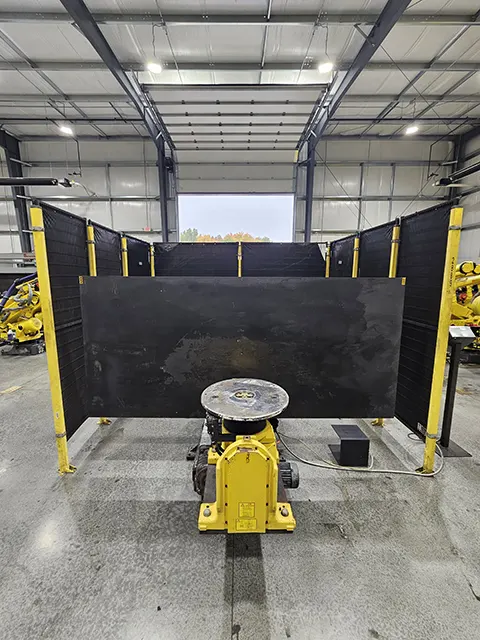

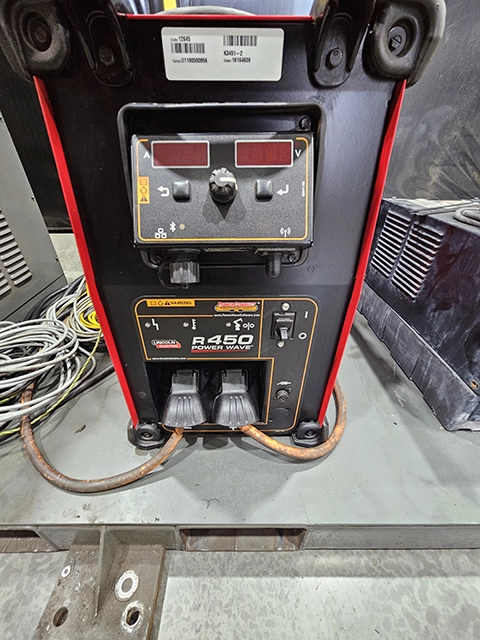

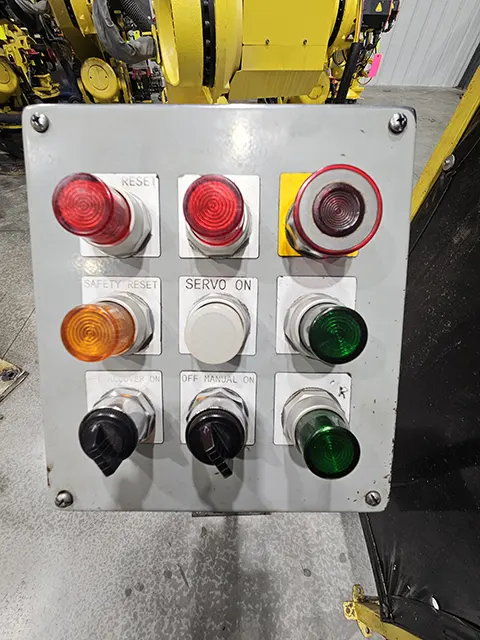

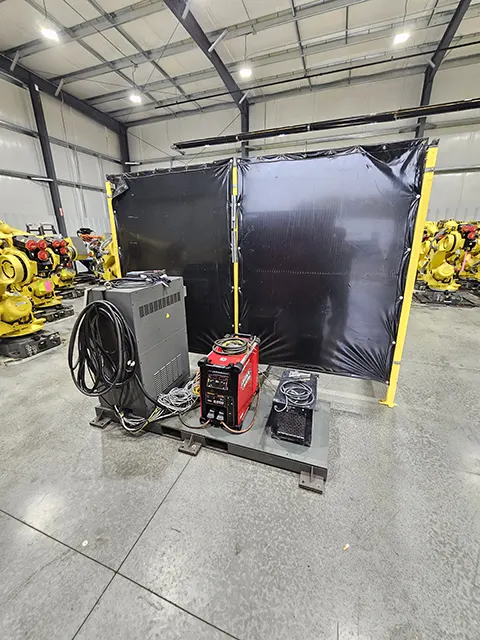

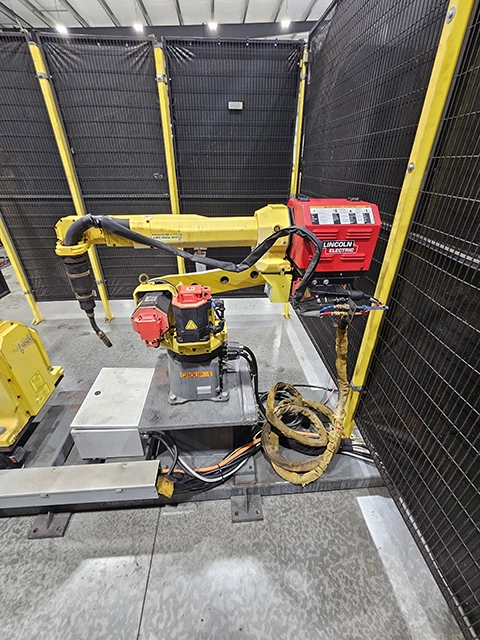

This FANUC Arcmate 100ic/6L industrial robot is a very clean unit that is integrated with dual tilt rotate positioners and a Lincoln Powerwave R450 robotic welder. This articulated robot is paired with the FANUC R-30ia controller. This robotic welding cell also has an integrated area scanner and operators station.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6
Payload: 6 KG (13.23 lbs)
Reach: 1632 MM (64.25 in)
Repeatability: ±0.1mm (.0039 in)
Robot Mass: 135 KG (297 lbs)
Structure: Articulated
Robot Motion Speed
J1 210 °/s (4.01 rad/s)
J2 190 °/s (3.93 rad/s)
J3 210 °/s (4.01 rad/s)
J4 400 °/s (7.50 rad/s)
J5 400 °/s (7.50 rad/s)
J6 600 °/s (11.00 rad/s)
Robot Motion Range
J1 - 360°
J2 - 250°
J3 - 445°
J4 - 380°
J5 - 380°
J6 - 720°
