F69704 - FANUC Arcmate 100ib

FANUC Arcmate 100ib

Robot Specifics

Condition - Tested and functioning to factory standards

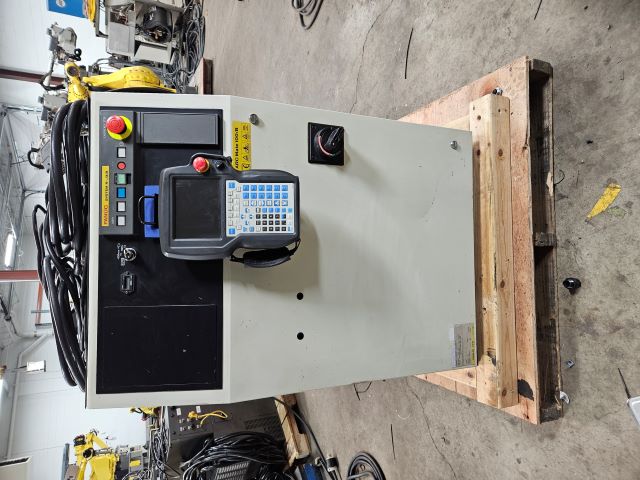

Controller - R-J3ib

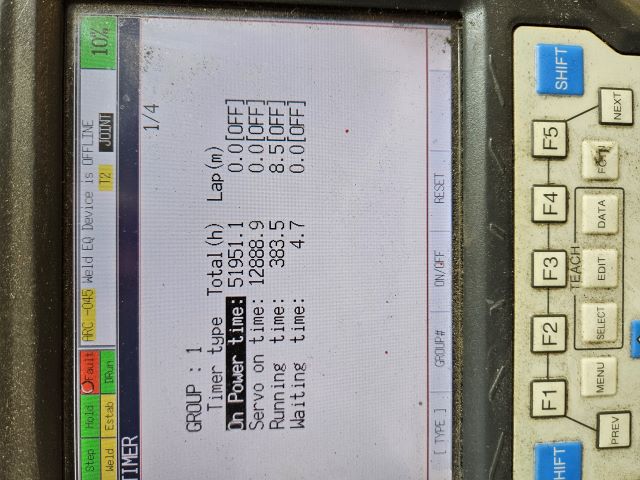

Running Hours - 383.7

Year - 2005

Serial - F69704

Axes 6

Payload: 6 KG (13 lbs)

Reach: 1373 MM (54 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 135 KG (297 lbs)

Structure: Articulated

Robot Motion Speed

J1 150 °/s (2.62 rad/s)

J2 160 °/s (2.79 rad/s)

J3 170 °/s (2.97 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range

J1 - 170°

J2 - 160°

J3 - 145°

J4 - 190°

J5 - 140°

J6 - 360°

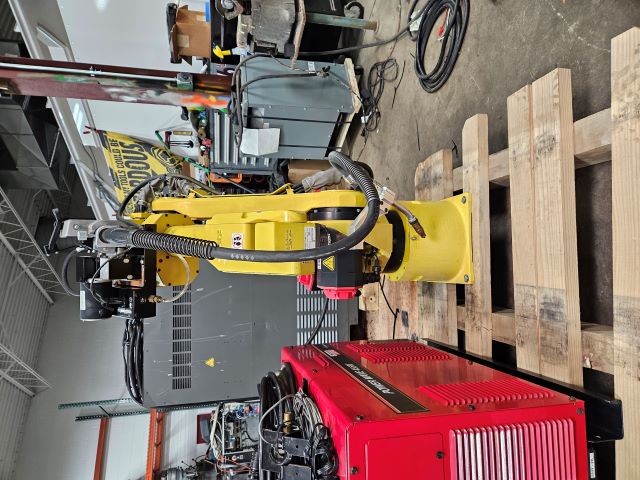

This FANUC Arcmate 100ib industrial robot is a low hour unit ready to be put in production. This robotic manipulator includes an integrated Lincoln Powerwave 455M welder and is ready to weld. This articulated robot is paired with the FANUC R-J3ib controller. Price includes basic licensed FANUC software and unlimited tech support. Options can be added for additional cost.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com
