Yaskawa MA1400

Robot Specifics

Condition - Tested and functioning to factory standards

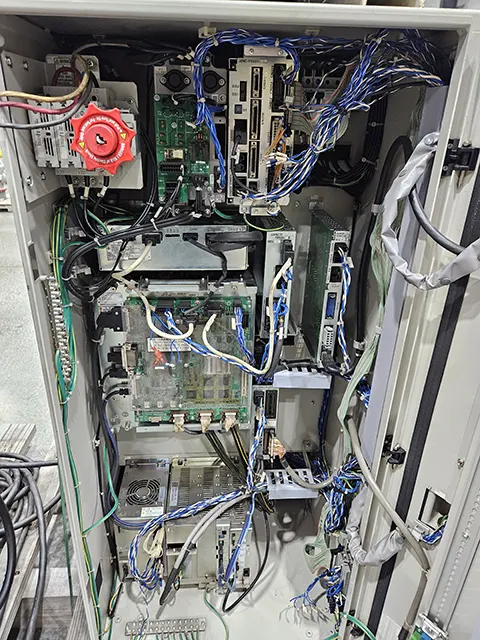

Controller - DX100

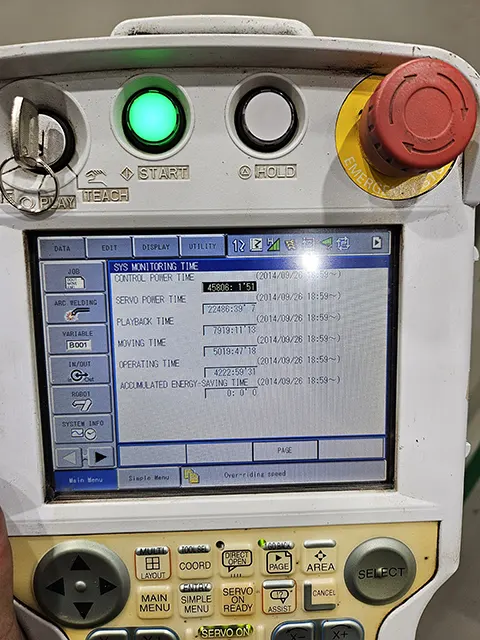

Moving Time - 5,019
Year - 2014
Availability - In Stock
Serial - S4M05311

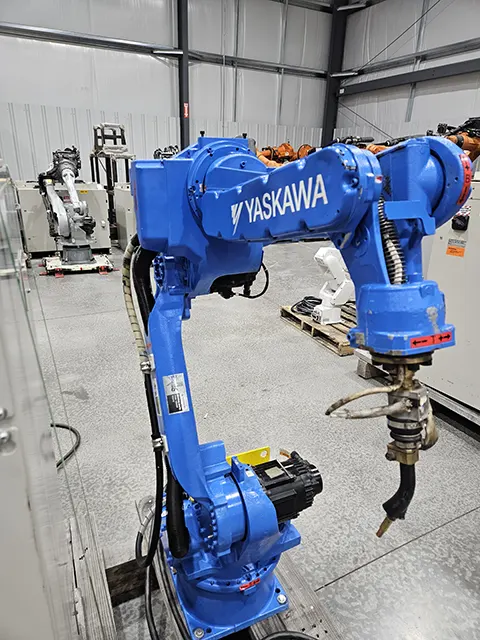

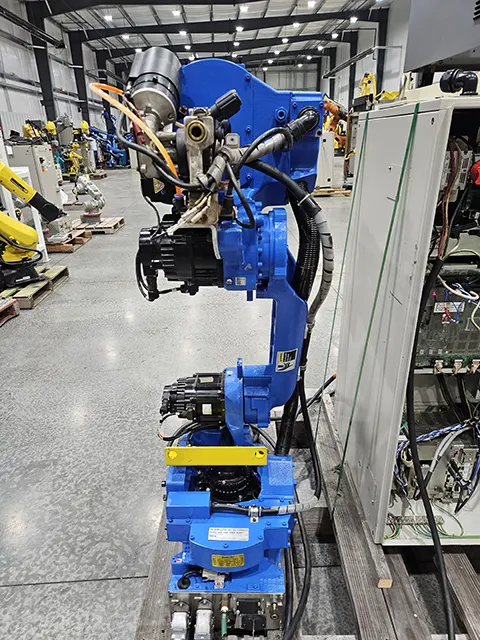

Yaskawa MA1400 Welding Robot $15,000 ea

This Yaskawa MA1400 industrial robot is in very good condition and ready for production This robotic manipulator is paired with the Yaskawa DX100 controller. This six axis robot is integrated with the Motoweld RL350 robotic welder.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6

Payload: 3 KG (6.61 lbs)

Reach: 1434 MM (56.46 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 130 KG (286.6 lbs)

Structure: Vertically Articulated

Robot Motion Speed

S-Axis 220 °/s (3.84 rad/s)

L-Axis 200 °/s (3.49 rad/s)

U-Axis 220 °/s (3.84 rad/s)

R-Axis 410 °/s (7.16 rad/s)

B-Axis 410 °/s (7.16 rad/s)

T-Axis 610 °/s (10.65 rad/s)

Robot Motion Range

S-Axis - 170°

L-Axis - 155°-90°

U-Axis - 190°-175°

R-Axis - 150°

B-Axis - 45°-180°

T-Axis - 200°

Robots Done Right
