Yaskawa MA1400

Robot Specifics

Condition - Tested and functioning to factory standards

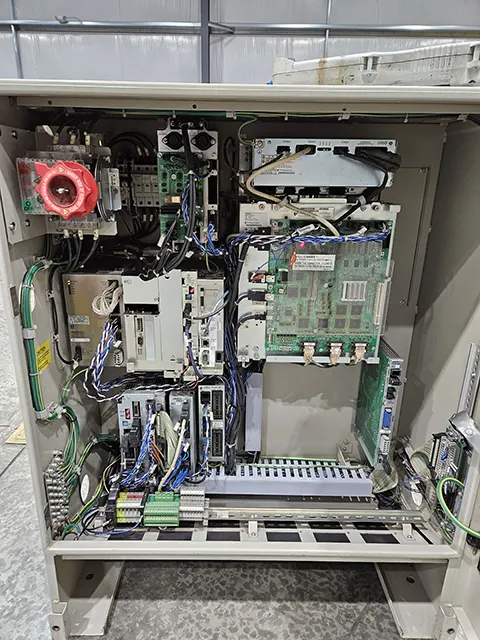

Controller - DX100
Moving Time - N/A
Year - 2010
Availability - In Stock
Serial - S06D1914

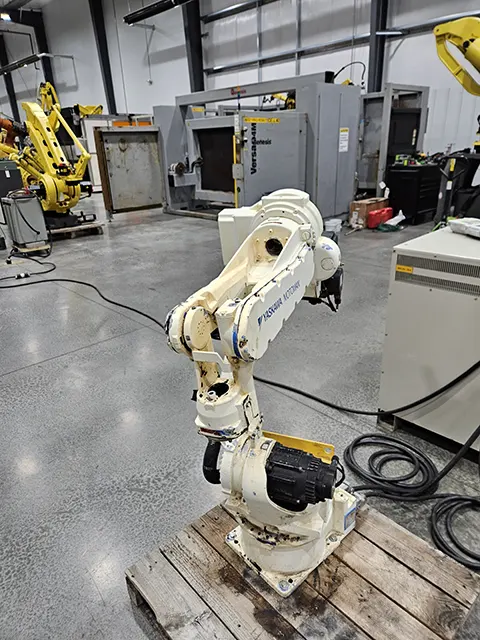

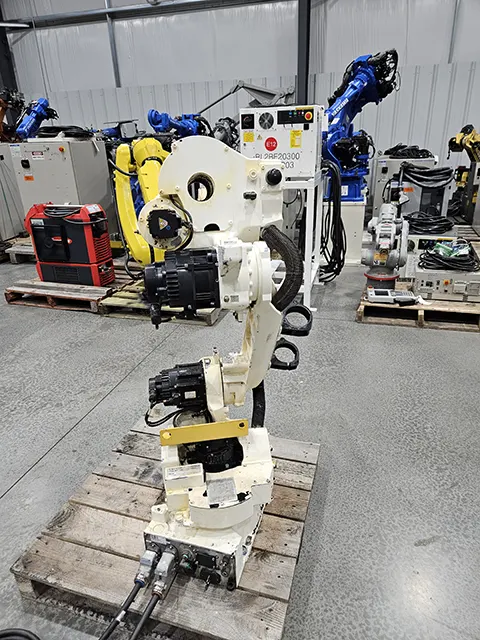

Yaskawa MA1400 Welding Robot $9,000 ea

This Yaskawa MA1400 industrial robot has been clean, tested and is ready for production This robotic manipulator is paired with the Yaskawa DX100 controller. This six axis robot is an economical choice for welding automation. The Yaskawa MA1400 features a reach of 1434 MM and a payload capacity of 3 KG. This robotic can be used for automated plasma welding, robotic laser welding, and automated TIG. This factory robot has been cleaned, tested and is production ready for a new application. This robot was reinitialized prior to arriving at our facility therefore we cannot obtain accurate hours on it.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6

Payload: 3 KG (6.61 lbs)

Reach: 1434 MM (56.46 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 130 KG (286.6 lbs)

Structure: Vertically Articulated

Robot Motion Speed

S-Axis 220 °/s (3.84 rad/s)

L-Axis 200 °/s (3.49 rad/s)

U-Axis 220 °/s (3.84 rad/s)

R-Axis 410 °/s (7.16 rad/s)

B-Axis 410 °/s (7.16 rad/s)

T-Axis 610 °/s (10.65 rad/s)

Robot Motion Range

S-Axis - 170°

L-Axis - 155°-90°

U-Axis - 190°-175°

R-Axis - 150°

B-Axis - 45°-180°

T-Axis - 200°
