FANUC Arcmate 120ic Welding Robot

Robot Specifics

Condition - Tested and functioning to factory standards

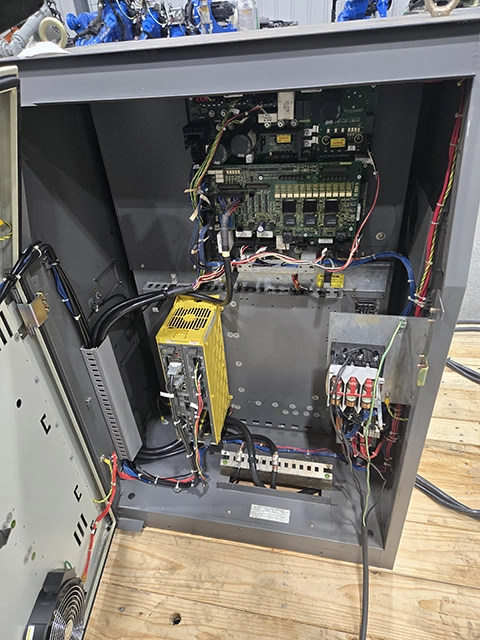

Controller - R-30ia

Running Hours - N/A

Year - 2008

Availability - In Stock

Serial - F90497

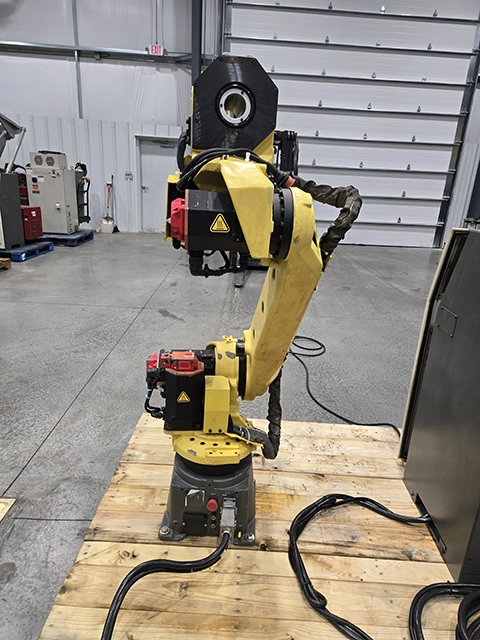

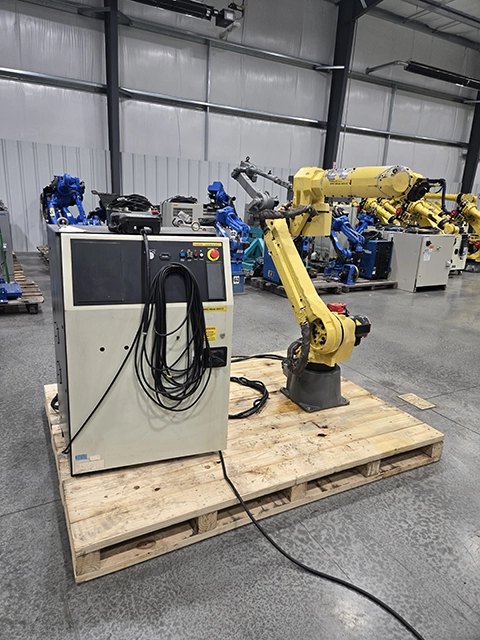

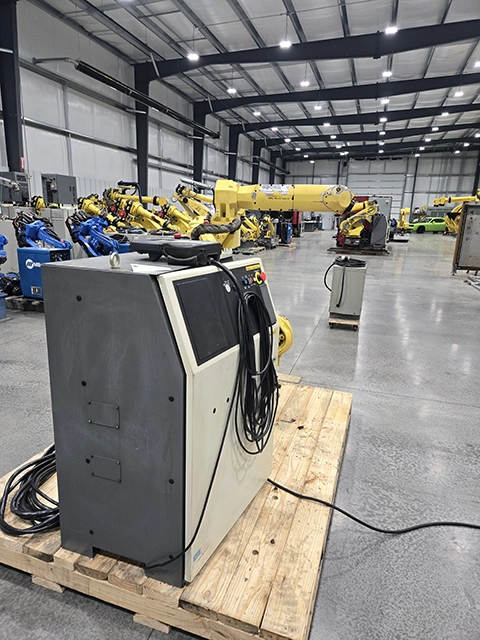

This FANUC Arcmate 120ic industrial robot has been cleaned, tested, and is ready to be put back in production. This articulated robot is controlled by the FANUC R-30ia controller.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Axes 6

Payload: 20 KG (44 lbs)

Reach: 1811 MM (71.31 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 250 KG (551 lbs)

Structure: Articulated

Robot Motion Speed

J1 195 °/s (3.40 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 360 °/s (6.28 rad/s)

J5 360 °/s (6.28 rad/s)

J6 550 °/s (9.60 rad/s)

Robot Motion Range

J1 - 370°

J2 - 260°

J3 - 458°

J4 - 400°

J5 - 360°

J6 - 900°
