FANUC Arcmate 120ic/10L Welding Cell With Dual Tilt Rotate



Robot Specifics

Condition - Tested and functioning to factory standards
Controller - R-30ia
Running Hours - 2,777
Year - 2013
Availability - In Stock
Serial - F139189

FANUC Arcmate 120ic/10L Welding Cell With Track And Track Mounted Headstock
$175,000 ea




Robot Description

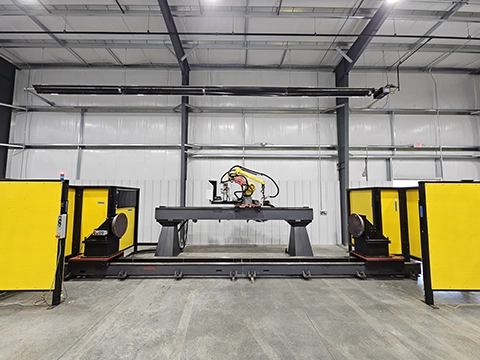

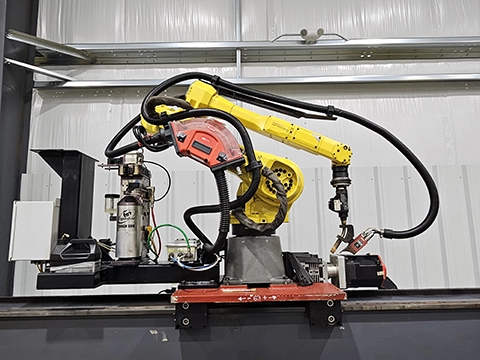

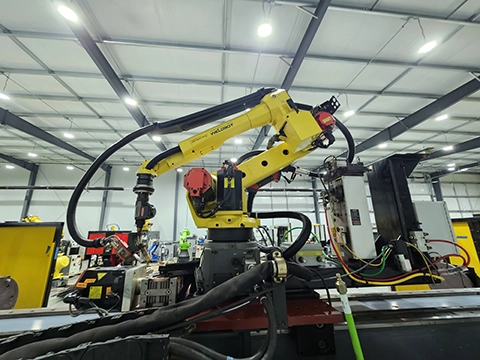

This FANUC Arcmate 120ic/10L industrial robot is a nice unit that is integrated with a servo driven track and a Fronius TPS 500i robotic welder. This articulated robot is paired with the FANUC R-30ib controller. The servo driven headstock is also mounted to a track giving this welding cell lots of flexibility. This robotic welding cell also has an integrated light curtains, torch reamer, and operators station. This robot is equipped with a laser sensor for touch sensing.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6
Payload: 10 KG (22 lbs)
Reach: 2009 MM (79.09 in)
Repeatability: ±0.1mm (.0039 in)
Robot Mass: 255 KG (562 lbs)
Structure: Articulated
Robot Motion Speed
J1 195 °/s (3.40 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range
J1 - 370°
J2 - 260°
J3 - 460°
J4 - 400°
J5 - 380°
J6 - 900°
