FANUC Arcmate 100ic Welding Robot

Robot Specifics

Condition - Tested and functioning to factory standards

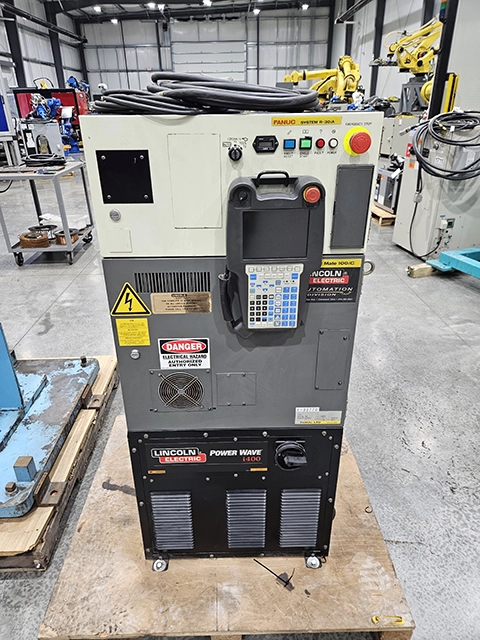

Controller - R-30ia

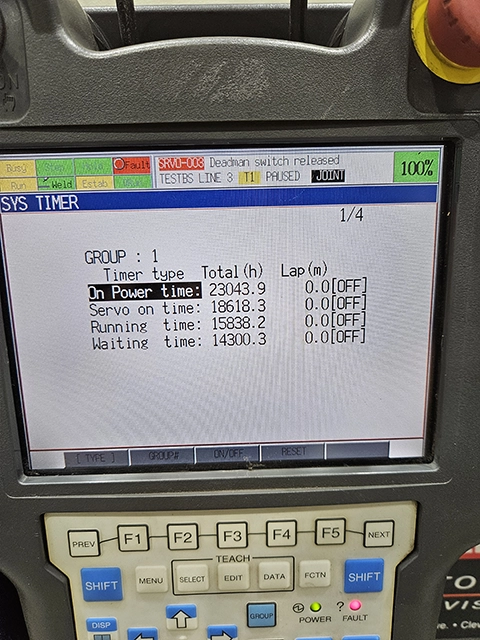

Running Hours - 15,868

Year - 2008

Availability - In Stock

Serial - F93700

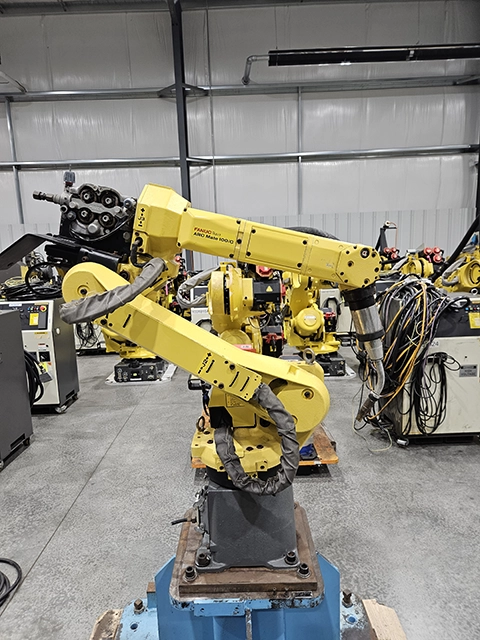

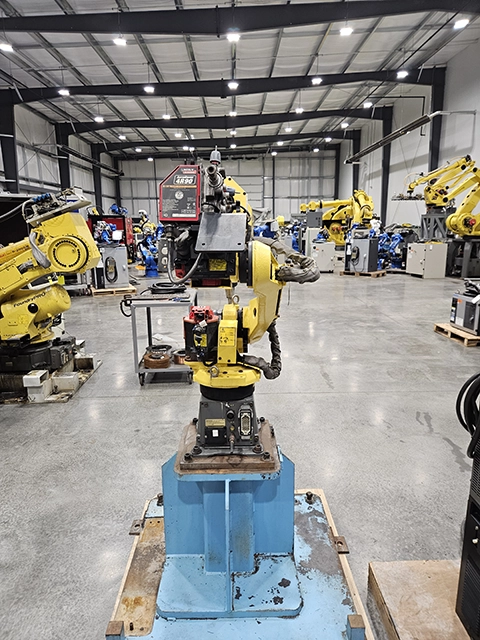

This FANUC Arcmate 100ic industrial robot is a very clean unit that is integrated with a Lincoln Powerwave i400 robotic welder. This articulated robot is paired with the FANUC R-30ia controller.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Axes 6

Payload: 10 KG (22 lbs)

Reach: 1420 MM (55.90 in)

Repeatability: ±0.08mm (.0031 in)

Robot Mass: 130 KG (286 lbs)

Structure: Articulated

Robot Motion Speed

J1 210 °/s (3.67 rad/s)

J2 190 °/s (3.32 rad/s)

J3 210 °/s (3.67 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 600 °/s (10.47 rad/s)

Robot Motion Range

J1 - 360°

J2 - 250°

J3 - 445°

J4 - 380°

J5 - 380°

J6 - 720°
