FANUC Arcmate 100ibe Welding Robot



Robot Specifics

Condition - Tested and functioning to factory standards
Controller - R-J3ib
Running Hours - N/A
Year - 2004
Availability - In Stock
Serial - F67732

FANUC Arcmate 100ibe Welding Cell With Lincoln 455M
$25,000 ea




Robot Description

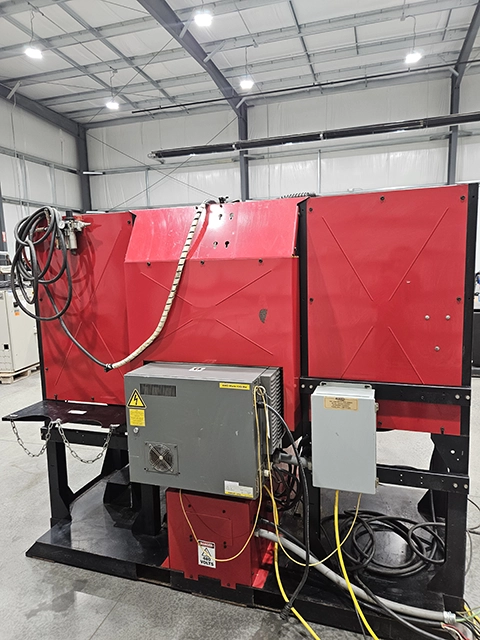

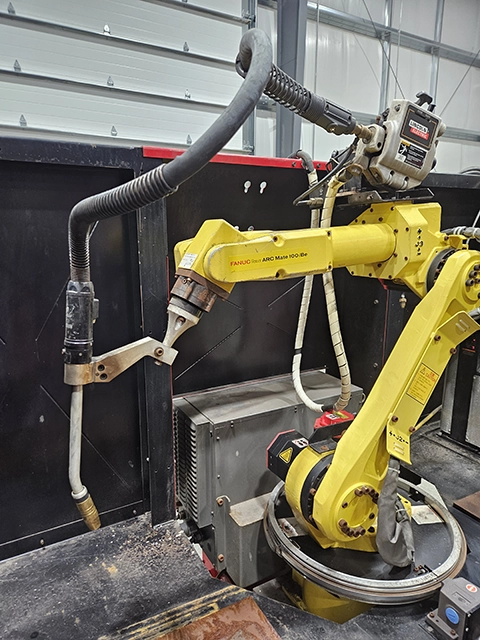

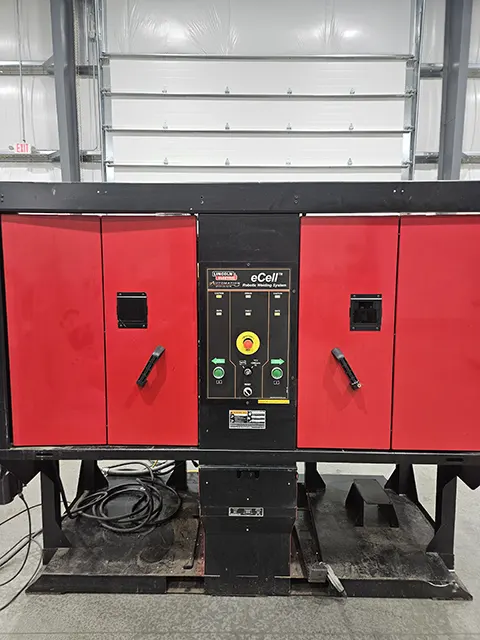

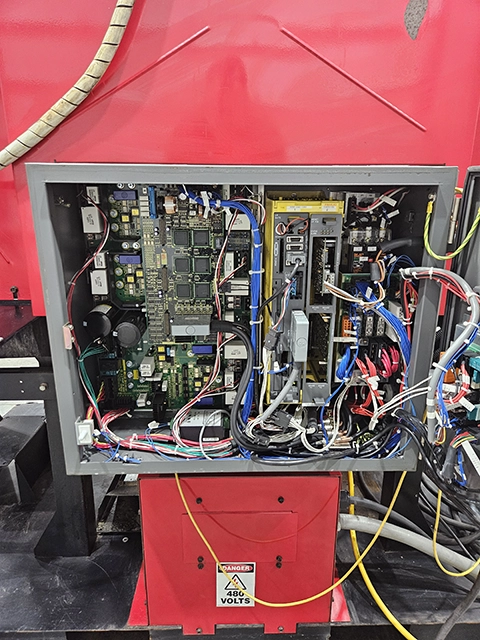

This Lincoln E-Cell includes a FANUC Arcmate 100ibe industrial robot and integrated Lincoln Powerwave 455M robotic welder. This robotic welding cell is controlled by the FANUC R-J3ib controller. This is a very economical solution for robotic welding. The cell included operator buttons and two stations.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6
Payload: 6 KG (13 lbs)
Reach: 1373 MM (54 in)
Repeatability: ±0.08mm (.0031 in)
Robot Mass: 135 KG (297 lbs)
Structure: Articulated
Robot Motion Speed
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range
J1 - 340°
J2 - 250°
J3 - 340°
J4 - 380°
J5 - 280°
J6 - 720°
