KUKA KR10 R1100



Robot Specifics

Condition - Tested and functioning to factory standards

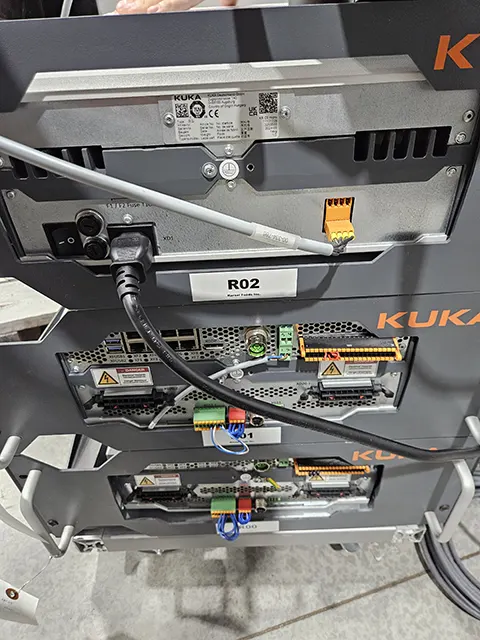

Controller - KRC5 Micro

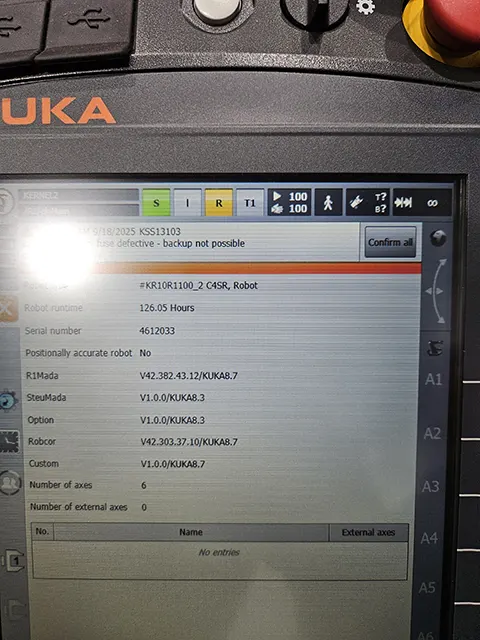

Running Hours - 126
Year - 2024
Availability - In Stock
Serial - 4612033

KUKA KR10 R1100
$24,000 ea



Robot Description

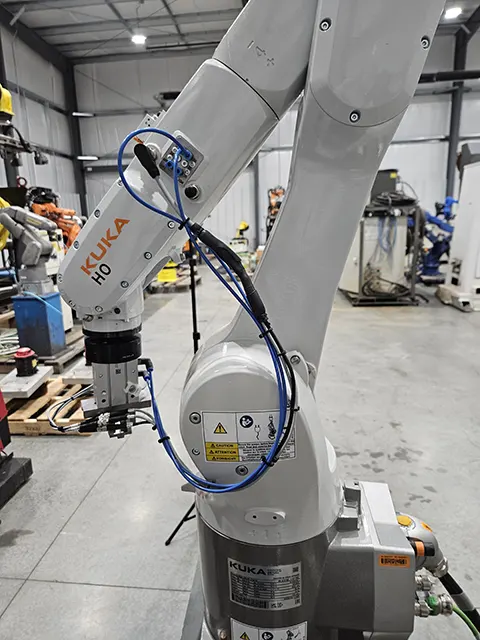

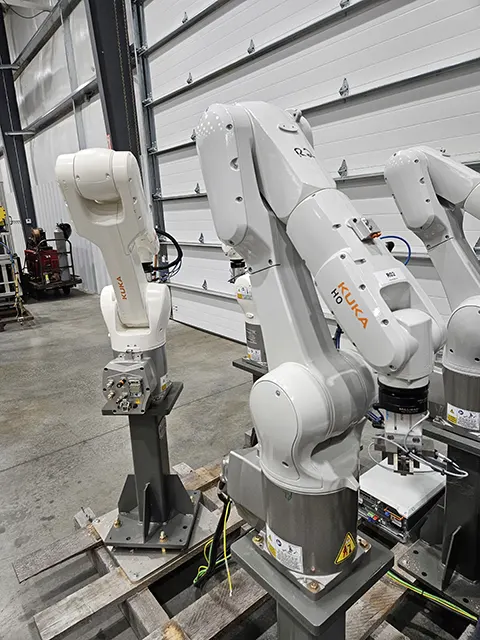

This KUKA KR10 R1100 industrial robot has very low hours and was never put into production. This articulated robot
is paired with the KUKA KRC5 micro controller. This industrial robotic arm is a food grade robot. This handling robot includes integrated gripper and riser.

Contact Robots Done Right for more information or to purchase this robotic manipulator at mm@robotsdoneright.com or call (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information.

Robot Specifications

Axes 6
Payload: 10 KG (13.22 lbs)
Reach: 1100 MM (43.30 in)
Repeatability: ±0.03mm (.0011 in)
Robot Mass: 55 KG (121.25 lbs)
Structure: Articulated
Robot Motion Speed
A1 300 °/s (5.23 rad/s)
A2 225 °/s (3.92 rad/s)
A3 225 °/s (3.92 rad/s)
A4 381 °/s (6.64 rad/s)
A5 311 °/s (5.42 rad/s)
A6 492 °/s (8.58 rad/s)
Robot Motion Range
A1 - ±170°
A2 - -190/45°
A3 - -120/156°
A4 - ±185°
A5 - ±120°
A6 - ±350°
