KUKA KR10 R1100

Robot Specifics

Condition - Tested and functioning to factory standards

Controller - KRC5 Micro

Running Hours - 181

Year - 2021

Availability - In Stock

Serial - 4555018

KUKA KR10 R1100
$23,500 ea

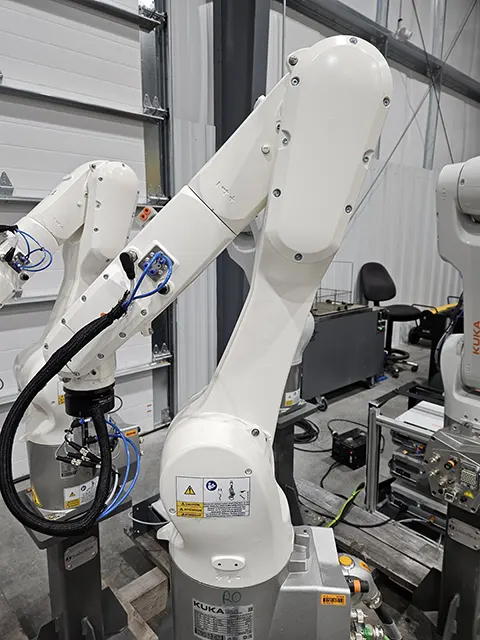

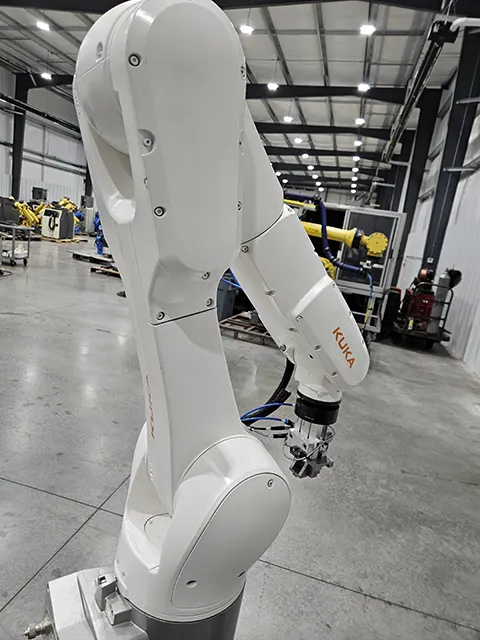

This KUKA KR10 R1100 industrial robot has very low hours and was never put into production. This articulated robot

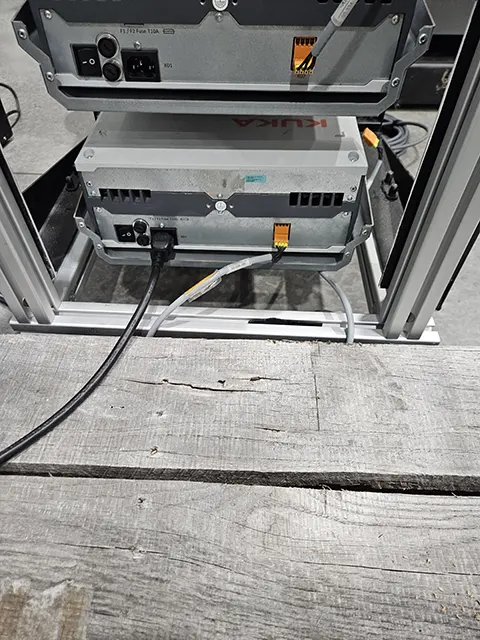

is paired with the KUKA KRC5 micro controller. This industrial robotic arm is a food grade robot. This handling robot includes integrated gripper and riser.

Contact Robots Done Right for more information or to purchase this robotic manipulator at mm@robotsdoneright.com or call (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information.

Axes 6

Payload: 10 KG (13.22 lbs)

Reach: 1100 MM (43.30 in)

Repeatability: ±0.03mm (.0011 in)

Robot Mass: 55 KG (121.25 lbs)

Structure: Articulated

Robot Motion Speed

A1 300 °/s (5.23 rad/s)

A2 225 °/s (3.92 rad/s)

A3 225 °/s (3.92 rad/s)

A4 381 °/s (6.64 rad/s)

A5 311 °/s (5.42 rad/s)

A6 492 °/s (8.58 rad/s)

Robot Motion Range

A1 - ±170°

A2 - -190/45°

A3 - -120/156°

A4 - ±185°

A5 - ±120°

A6 - ±350°
