F273784 - FANUC Arcmate 120id/12L

FANUC Arcmate 120id/12L

Robot Specifics

Condition - Tested and functioning to factory standards

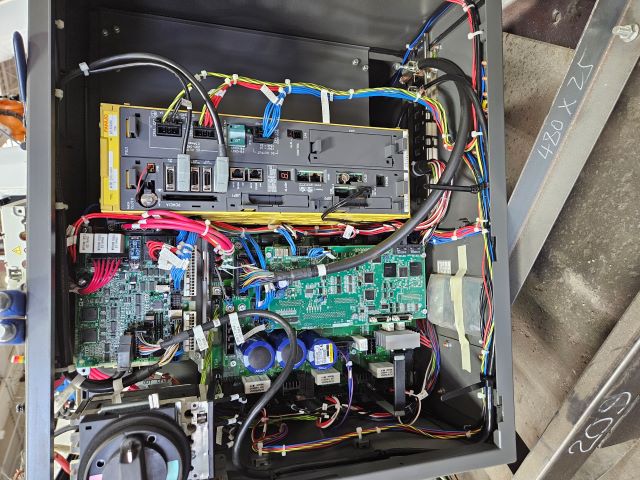

Controller - R-30ib Plus

Running Hours - 307

Year - 2021

Serial - F273784

Axes 6

Payload: 12 KG (55 lbs)

Reach: 2272 MM (72.08 in)

Repeatability: ±0.03mm (.0007 in)

Robot Mass: 250 KG (551 lbs)

Structure: Articulated

Robot Motion Speed

J1 210 °/s (3.66 rad/s)

J2 210 °/s (3.66 rad/s)

J3 265 °/s (4.62 rad/s)

J4 420 °/s (7.33 rad/s)

J5 420 °/s (7.33 rad/s)

J6 720 °/s (12.56 rad/s)

Robot Motion Range

J1 - 370°

J2 - 260°

J3 - 475°

J4 - 400°

J5 - 360°

J6 - 900°

This FANUC Arcmate 120id/12L industrial robot has low running hours and is ready to get to work. This robotic manipulator is an extended reach robot with a maximum reach of 2272 MM. This articulated robot is paired with the FANUC R-30ib Plus controller. Price includes basic licensed FANUC software and unlimited tech support. Options can be added for additional cost.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com
