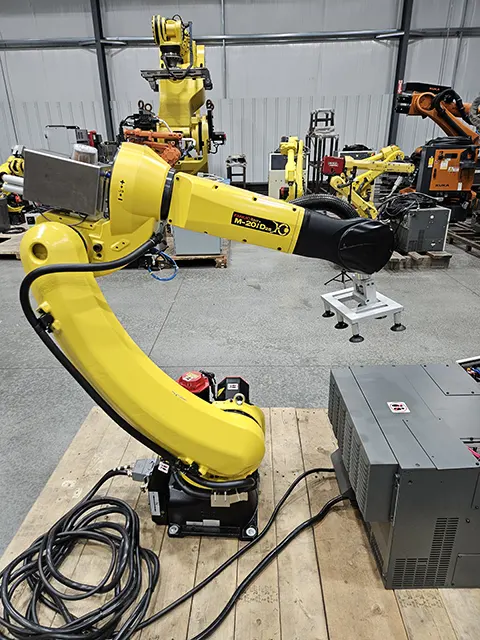

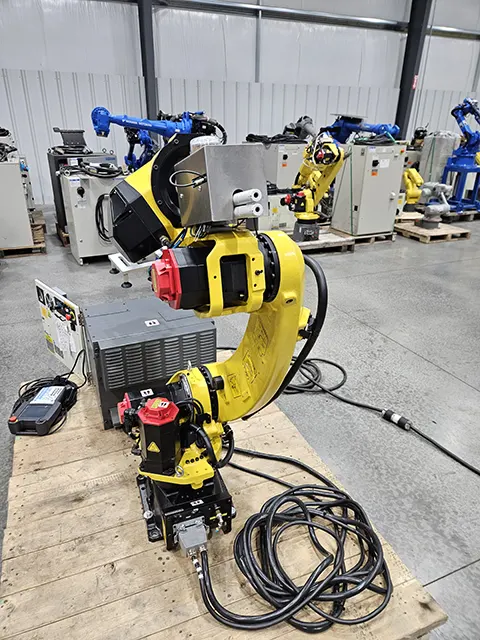

FANUC M-20id/25 Industrial Robot



Robot Specifics

Condition - Tested and working to factory settings

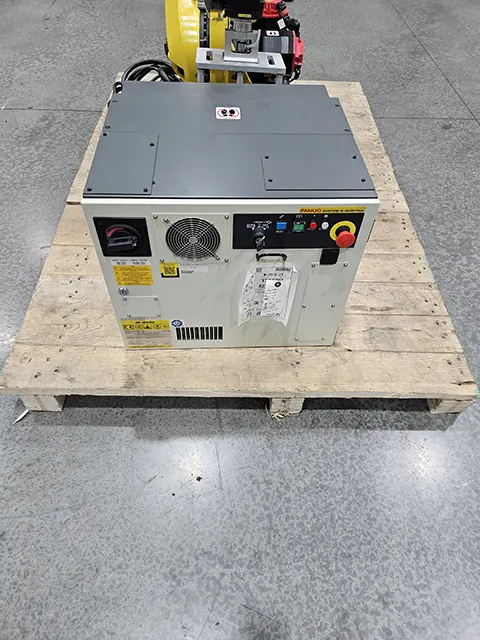

Controller - R-30ib Plus

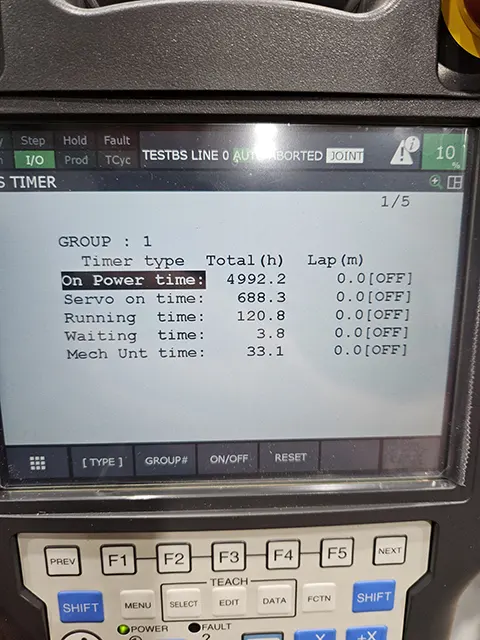

Running Hours - 120.8
Year - 2022
Availability - In Stock
Serial - E177779

FANUC M-20id/25 Industrial Robot
$37,500 ea




Robot Description

This FANUC M-20id/25 industrial robot has very low hours and ready for a new application. This articulated robot is controlled by the FANUC R-30ib Plus controller. Licensed FANUC software and unlimited tech support are available at additional cost.

Contact Robots Done Right for more information or to purchase this industrial robot arm at mm@robotsdoneright.com or (440) 724-6568.

For more information on condition of the robot and return policies of Robots Done Right please review our product information

Robot Specifications

Axes 6
Payload: 25 KG (55 lbs)
Reach: 1831 MM (72.08 in)
Repeatability: ±0.02mm (.0007 in)
Robot Mass: 250 KG (551 lbs)
Structure: Articulated
Robot Motion Speed
J1 210 °/s (3.66 rad/s)
J2 210 °/s (3.66 rad/s)
J3 265 °/s (4.62 rad/s)
J4 420 °/s (7.33 rad/s)
J5 420 °/s (7.33 rad/s)
J6 720 °/s (12.56 rad/s)
Robot Motion Range
J1 - 370°
J2 - 260°
J3 - 475°
J4 - 400°
J5 - 360°
J6 - 900°
