| Condition - Tested and functioning to factory standards |

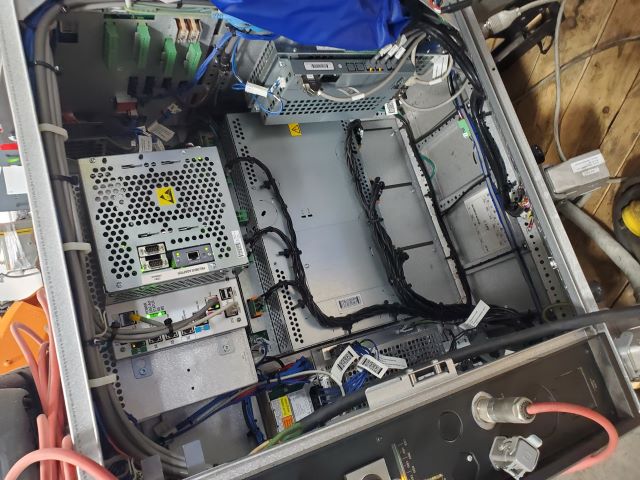

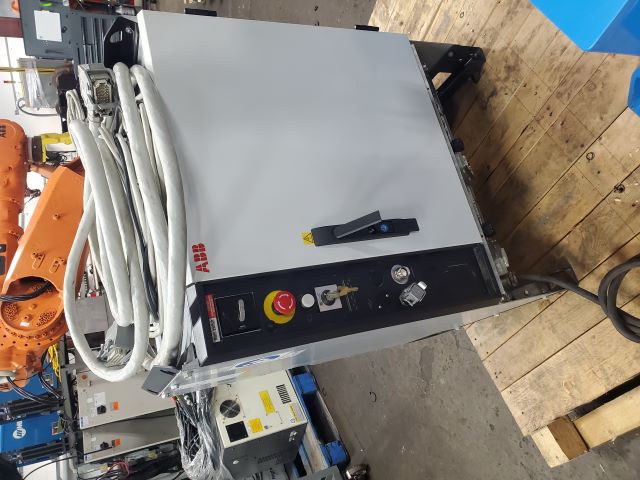

| Controller - IRC5 |

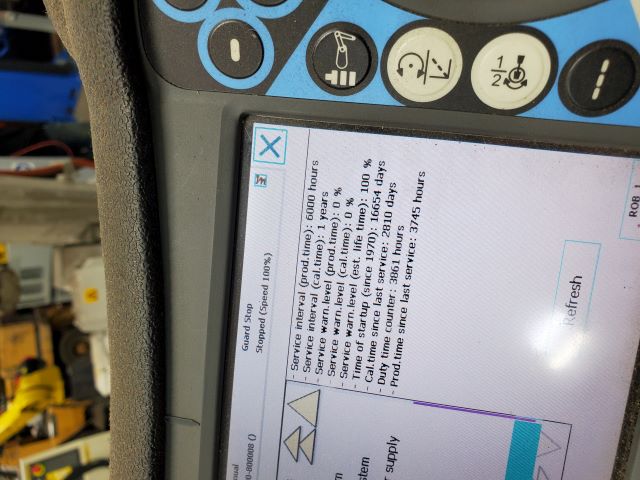

| Running Hours - 3861 |
| Year - 2015 |
| Serial - 2600800008 |
| Axes 6 |
| Payload: 15 KG (33.06 lbs) |
| Reach: 1.85 M (72.83 in) |
| Repeatability: ±0.04mm (.0015 in) |
| Robot Mass: 284 KG (626.11 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| Axis 1 175 °/s (3.05 rad/s) |
| Axis 2 175 °/s (3.05 rad/s) |
| Axis 3 175 °/s (3.05 rad/s) |
| Axis 4 360 °/s (6.28 rad/s) |
| Axis 5 360 °/s (6.28 rad/s) |
| Axis 6 500 °/s (8.72 rad/s) |
| Robot Motion Range |
| Axis 1 - +180° to -180° |
| Axis 2 - +155° to -95° |
| Axis 3 - +75° to -180° |
| Axis 4 - +175° to -175° |
| Axis 5 - +120° to -120° |
| Axis 6 - +400° to -400° |
